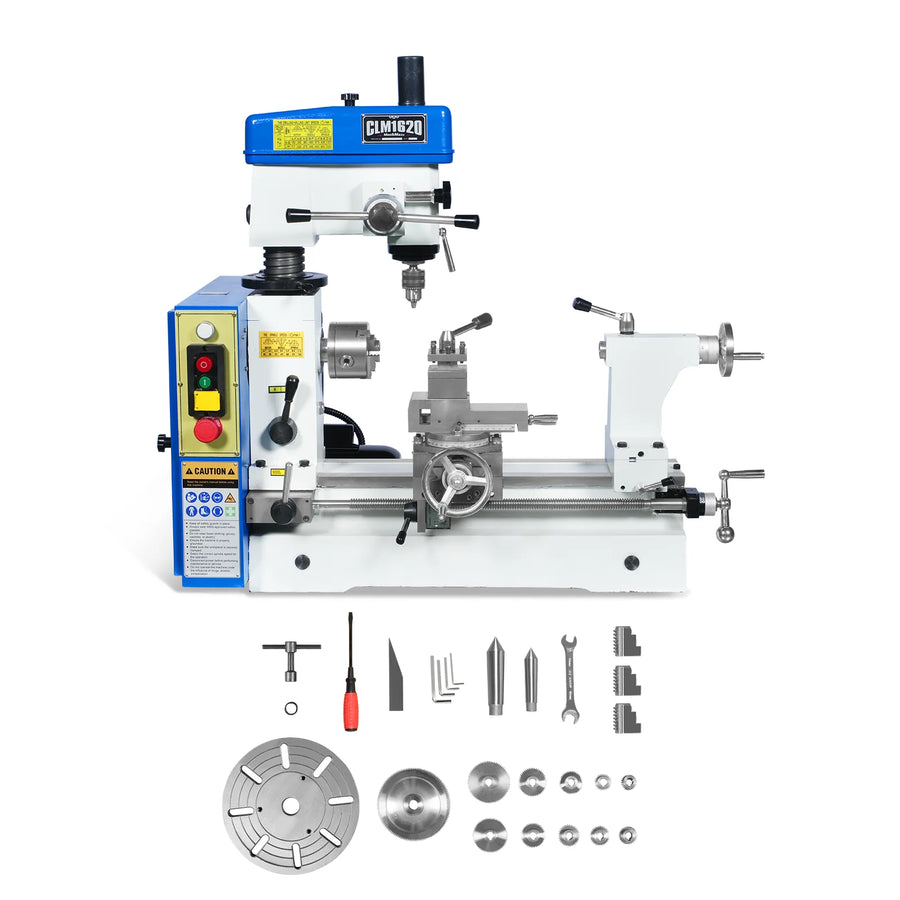

1 HP 16''x16'' Multi-Function Metal Lathe Milling Machine Head for Metalworking Combo Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Combination Metalworking Projects without Stand CLM1620
Factory Authorized Dealer
Authorized for Milwaukee, DeWalt, Makita, Bosch, Festool. Never gray-market.
Full Manufacturer Warranty
Every tool is covered by the full factory warranty and serviced through authorized service centers.
Free Shipping Over $99
Order by 3PM CT for same-day shipping. Ships from US warehouses.
30-Day Money-Back Guarantee
Return any unused tool in original packaging within 30 days for a full refund.
Talk to a Tool Expert
1-800-555-0199
Mon–Fri 7AM–7PM CT • Sat 8AM–4PM CT
Live chat with real tool specialists — never a bot
Genuine OEM Parts & Accessories
Replacement parts and accessories sourced direct from the manufacturer.
| Lathe | |
| Motor Power (Lathe) | 1HP(750W), Single-Phase, 110V, 60HZ |
| Swing Over Bed | 16-8/15''(420mm) |
| Swing Over Cross Slide | 11-1/2"(120mm) |
| Distance Between Centers | 15-3/4''(400mm) |
| Bed Width | 5-5/16''(135mm) |
| Spindle Bore | 11/14''(20mm) |
| Spindle Mount | Flange mount |
| Spindle Type | Integrated Spindle |
| DIA of the chuck | 4''(100mm) |
| Spindle Taper | MT3 |
| Tailstock Taper | MT3 |
| Tailstock Quill Travel | 2-3/4''(70mm) |
| Carriage Travel | 15''(380mm) |
| Carriage Leadscrew Diameter | 25/32"(20mm) |
| Cross Slide Travel | 4-8/11''(120mm) |
| Compound Slide Travel | 3''(76.2mm) |
| Spindle Speed Range | 160-1360RPM |
| Number of Speed Ranges | 7 |
| Longitudinal Feed Rate | 0.002''-0.007'' in/r |
| Transverse Feed Rate | NO |
| Leadscrew Size & Pitch | 20mm 6TPI |
| Threading Capacity – Inch | 8-120TPI |
| Threading Capacity – Metric | 0.2-3mm |
| Thread Dial Indicator | NO |
| Maximum Tool Bit Size | 1/2''x1/2''(12x12mm) |
| Drill/Mill | |
| Motor Power (Mill Head) | Powered by the lathe's motor |
| Mill Taper | MT3 |
| Spindle Speed Range | 117, 150, 220, 276, 290, 345, 360, 440, 450, 575, 640, 836, 1000, 1300 |
| Number of Speed Steps | 14 |
| Spindle Travel | 3-11/32"(85mm) |
| Drawbar Thread Size | 3/8''(9.52mm) |
| Drawbar Length | 10-3/4''(273mm) |
| Drawbar Thread Pitch | 16TPI |
| Drill Capacity | 19/32''(15mm) |
| End Milling Capacity | 25/32"(20mm) |
| Face Milling Capacity | 2-1/2"(63mm) |
| Vertical Travel (Z-Axis) | 3-5/32''(80mm) |
| Distance: Spindle to Table | 15-3/4''(400mm) |
| Distance: Spindle to Center Line | 9-3/4''(248mm) |
| Headstock Height | 3''(76.2mm) |
| Head Tilt Angle | 0° |
| Swivel angle of the headstock | 360° |
| Drive Type | Belt-driven AC Motor |
| Overall Dimensions | 41''x23''x43''(1050x580x1090mm) |
| N.W/G.W | 408/463lbs(180/210kg) |
