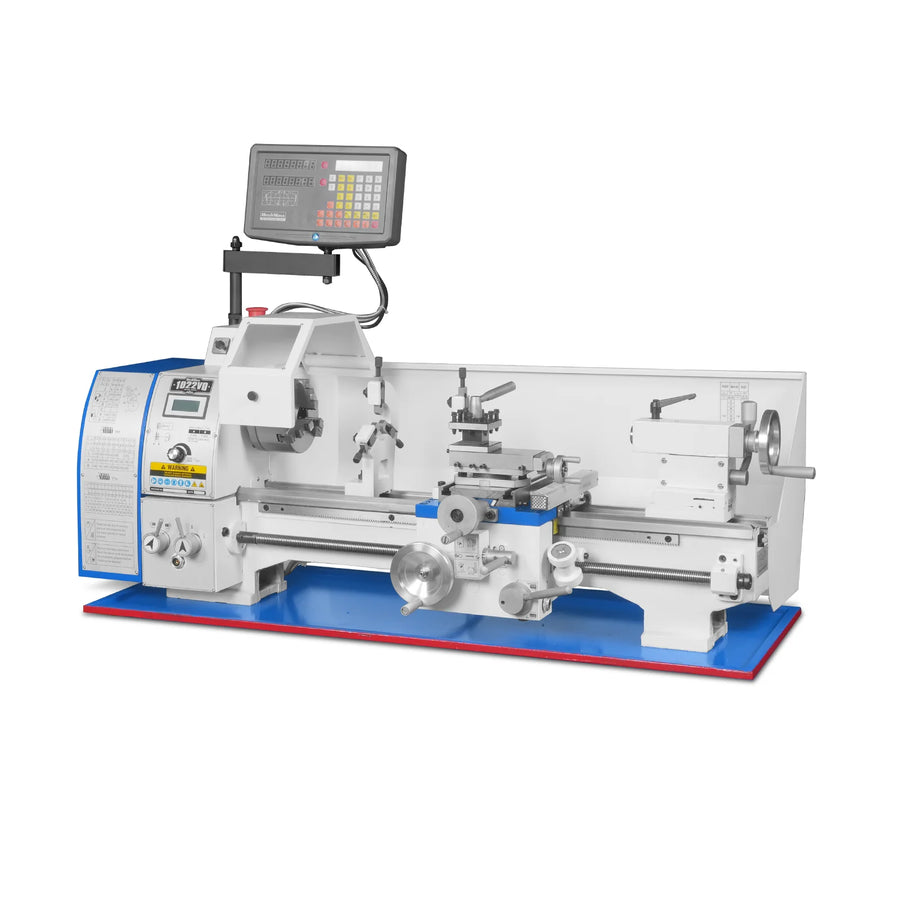

10'' x 22'' Industrial Metal Lathe Machine with DRO High Precision Benchtop 1.5HP Brushless Motor 0-2000 RPM Variable Speed Metal Working Machine Small Lathe without Stand 1022VD
Factory Authorized Dealer
Authorized for Milwaukee, DeWalt, Makita, Bosch, Festool. Never gray-market.
Full Manufacturer Warranty
Every tool is covered by the full factory warranty and serviced through authorized service centers.
Free Shipping Over $99
Order by 3PM CT for same-day shipping. Ships from US warehouses.
30-Day Money-Back Guarantee
Return any unused tool in original packaging within 30 days for a full refund.
Talk to a Tool Expert
1-800-555-0199
Mon–Fri 7AM–7PM CT • Sat 8AM–4PM CT
Live chat with real tool specialists — never a bot
Genuine OEM Parts & Accessories
Replacement parts and accessories sourced direct from the manufacturer.
| Specification | 1022VD |
| Motor | 1.5 HP, 110V, single-phase, 10A |
| Swing Over Bed | 9-7/8" (250 mm) |
| Swing Over Cross Slide | 5-1/2" (140 mm) |
| Swing Over Saddle | 5" (127 mm) |
| Distance Between Centers | 21-5/8" (550 mm) |
| Bed Width | 5-3/8" (135mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | Intrinsic back plate |
| Spindle Type | One-piece Spindle |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#2 |
| Tailstock Quill Travel | 3" (75 mm) |
| Cross Slide Travel | 5" (127 mm) |
| Compound Slide Travel | 3" (75 mm) |
| Carriage Travel | 19-5/8"(500mm) |
| Spindle Speeds | 0–2000 RPM |
| Number of Speed Ranges | Variable |
| Longitudinal Feeds | 0.0025 – 0.014 in./rev. |
| Transverse Feed Rate | 0.0014 – 0.004 in./rev. |
| Leadscrew Size & Pitch | 20mm(8TPI) |
| Threading Capacity - Inch | 8–80 TPI(37KINDS) |
| Threading Capacity - Metric | 0.35 – 3.0 mm(21kinds) |
| Maximum Tool Bit Size | 15/32''(12mm) |
| Thread Dial Indicator | YES |
| Coolant System | OPTIONAL |
| Overall Dimensions | 44.0" × 25.0" × 19.0" (1220 × 635 × 480 mm) |
| Approximate Shipping Weight | 308/352 lbs (140/160 kg) |
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
| Voltage | 18V |
|---|---|
| Power Source | Cordless — Lithium-Ion |
| Manufacturer Part Number | 500015 |
| Brand | MechMaxx |
| Tool Type | machine |
| Condition | New — factory sealed, US-spec unit |
| Warranty | Full Manufacturer Warranty |
Specifications are supplied by the manufacturer and may change without notice. Verify critical dimensions before ordering — or call 1-800-555-0199 and we will confirm.
