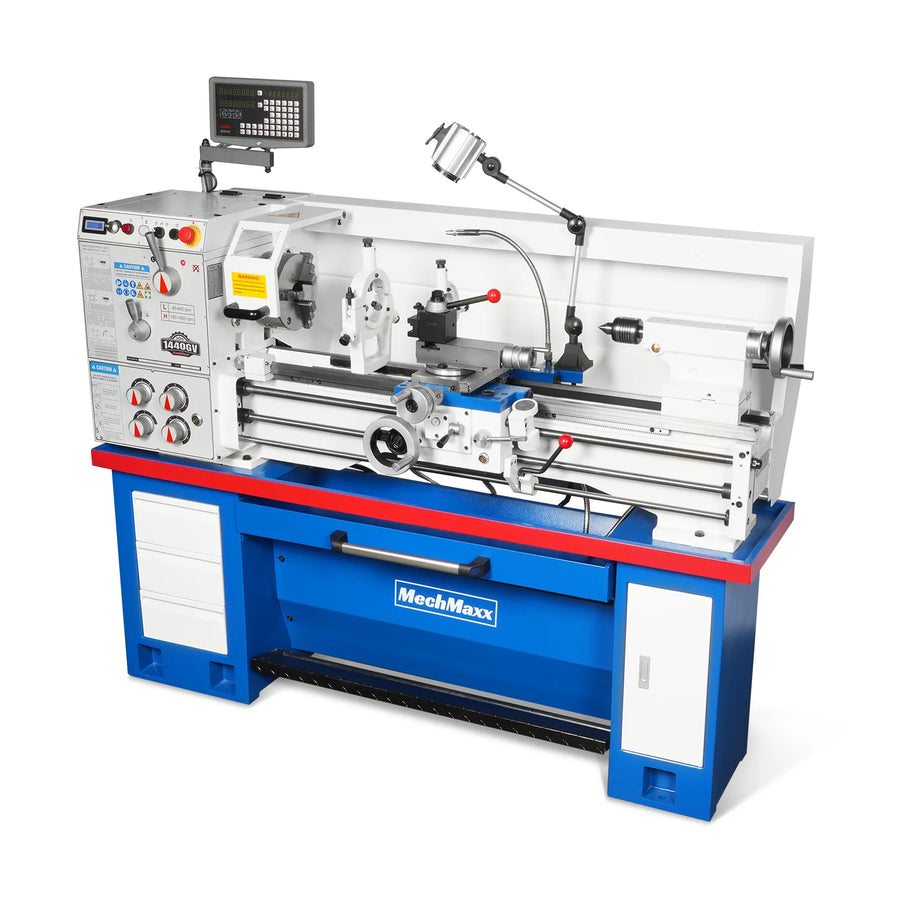

14" x 40" Industrial Metal Lathe Machine with Variable Speed DRO Gunsmith Gearhead Precision Turning Drilling Belt Drive 1440GV
Factory Authorized Dealer
Authorized for Milwaukee, DeWalt, Makita, Bosch, Festool. Never gray-market.
Full Manufacturer Warranty
Every tool is covered by the full factory warranty and serviced through authorized service centers.
Free Shipping Over $99
Order by 3PM CT for same-day shipping. Ships from US warehouses.
30-Day Money-Back Guarantee
Return any unused tool in original packaging within 30 days for a full refund.
Talk to a Tool Expert
1-800-555-0199
Mon–Fri 7AM–7PM CT • Sat 8AM–4PM CT
Live chat with real tool specialists — never a bot
Genuine OEM Parts & Accessories
Replacement parts and accessories sourced direct from the manufacturer.
| Specification | Specification Value |
| Swing Over Bed | 14 in (356 mm) |
| Swing Over Cross Slide | 8-13/16 in (224 mm) |
| Swing Over Gap | 19-3/4 in (502 mm) |
| Distance Between Centers | 40 in (1016 mm) |
| Bed Width | 7.38 in (187 mm) |
| Spindle Bore | 2 in (51 mm) |
| Spindle Mount | D1-5 Camlock |
| Spindle Taper | MT6 |
| Tailstock Taper | MT4 |
| Tailstock Quill Diameter | 1.26 in (32 mm) |
| Tailstock Quill Travel | 4 in (102 mm) |
| Cross Slide Travel | 6-11/16 in (170 mm) |
| Compound Rest Travel | 3 in |
| Motor Power | 3 HP |
| Motor Type | AC Motor with Variable Frequency Drive |
| Drive Type | Belt Drive |
| Voltage | 220V |
| Phase | 1-Phase |
| Frequency | 60 Hz |
| Amperage | 20 A |
| Speed Adjustment | Infinitely Variable |
| Spindle Speed Range | 40 – 1800 RPM |
| Longitudinal Feed Rate | 0.002 – 0.046 in/rev (IPR) |
| Cross Feed Rate | 0.0007 – 0.0187 in/rev (IPR) |
| Inch Threads | 4 – 56 TPI |
| Metric Threads | 0.4 – 7.0 mm pitch |
| Machine Footprint (W × D) | 72 × 24 in (1829 × 610 mm) |
| Overall Dimensions (L × W × H) | 76 × 30 × 60 in (1930 × 762 × 1524 mm) |
| Net Weight | 1800 lb (816 kg) |
| Shipping Dimensions | 78 × 48 × 72 in (1981 × 1219 × 1829 mm) |
| Shipping Weight | 1900 lb (861 kg) |
| Liftgate Compatible | Yes |
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
| Voltage | 18V |
|---|---|
| Power Source | Cordless — Lithium-Ion |
| Manufacturer Part Number | 500010 |
| Brand | MechMaxx |
| Tool Type | machine |
| Shipping Weight | 861826 g |
| Condition | New — factory sealed, US-spec unit |
| Warranty | Full Manufacturer Warranty |
Specifications are supplied by the manufacturer and may change without notice. Verify critical dimensions before ordering — or call 1-800-555-0199 and we will confirm.
