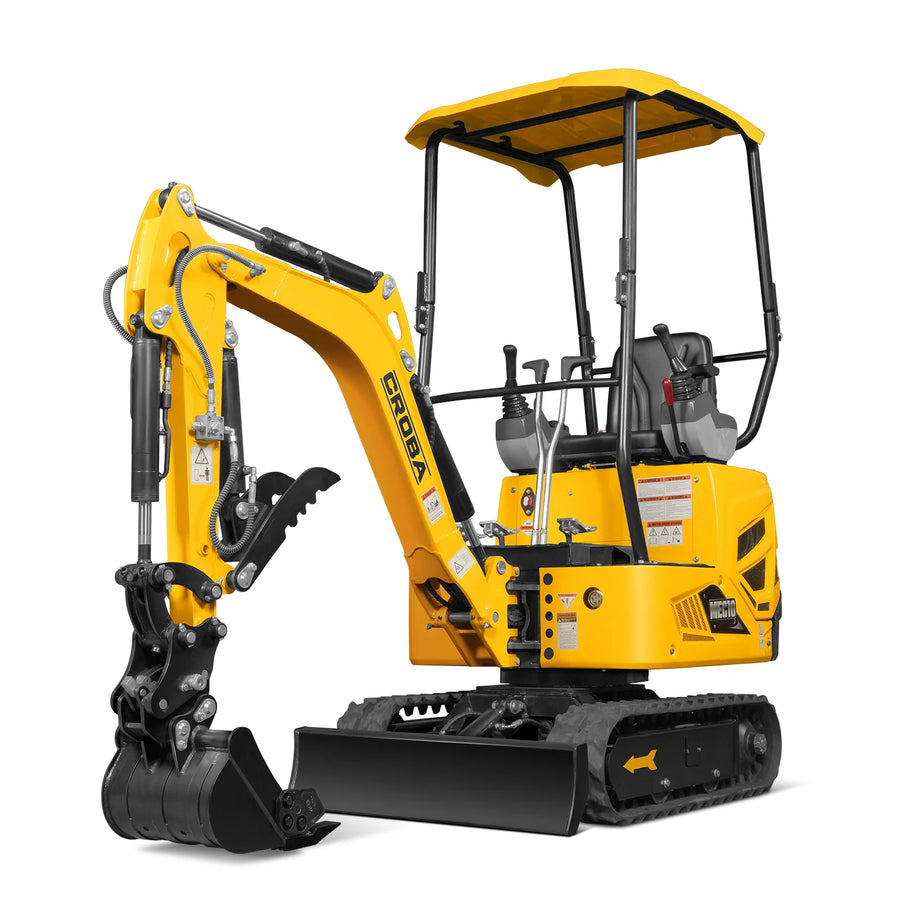

Mini Compact Excavator B&S VANGUARD 408cc 14hp Engine, 65.7" Max. Digging Depth, 1 Ton, 2370 LBS Operating Weight, MEC10
Factory Authorized Dealer
Authorized for Milwaukee, DeWalt, Makita, Bosch, Festool. Never gray-market.
Full Manufacturer Warranty
Every tool is covered by the full factory warranty and serviced through authorized service centers.
Free Shipping Over $99
Order by 3PM CT for same-day shipping. Ships from US warehouses.
30-Day Money-Back Guarantee
Return any unused tool in original packaging within 30 days for a full refund.
Talk to a Tool Expert
1-800-555-0199
Mon–Fri 7AM–7PM CT • Sat 8AM–4PM CT
Live chat with real tool specialists — never a bot
Genuine OEM Parts & Accessories
Replacement parts and accessories sourced direct from the manufacturer.
| ENGINE | |||
| Model | Vanguard 25V000 | Displacement | 408cc |
| No.Of Cylinders | 1 | Engine Output | 14hp |
| Stroke | 2.638in | Warranty for Engine | 3-Year |
| Bore | 3.465in | Fuel Tank | 1.52 gal |
| Rated speed | 3600rpm | Engine Oil | 0.7gal |
| TRAVEL SYSTEM | |||
| Max. Travel Speed | 0.75 mile/h | Ground Pressure | 5.1psi |
| Maximum Traction Force | 3035 lbf | Gradeability - Maximum | Maximum 30 degrees |
| Ground Clearance | 15.9in | Operating Weight | 2370lbs |
| HYDRAULIC SYSTEM | |||
| Hydraulic Oil Tank | 3.96gal | Max.Discharge Flow | 4.65 gpm |
| SWING SYSTEM | |||
| Swing Speed | 8rpm | Tail Swing Radius | 32.6in |
| DIGGING FORCE | |||
| Bucket Digging Force | 1619 lbf | Arm Digging Force | 1191 lbf |
| Bucket Capacity | 0.7 ft³ | Bucket Width | 15 in |
| SCOPE OF WORK | |||
| Max.Digging Height | 109 in | Min Turning Radius Of Working Device | 48.1in |
| Max.Dumping Height | 80 in | Max. Lifting Height Dozer Blade | 5.9in |
| Max.Digging Depth | 65.7in | Max. Depth Dozer Blade | 7.4in |
| Max.Vertical Digging Depth | 62.6in | Boom Swing - Left | 53° |
| Max Digging Radius | 119in | Boom Swing - Right | 40° |
| Max.digging Radius At Ground Level | 118.7in | ||
| DIMENSIONS | |||
| Transportation Length | 82in/115in | Crawler Wheel Base | 36in |
| Overall Width | 37in | Track Belt/Shoe Width | 7in |
| Overall Height（To Top Of Cab） | 88.5in | Track Length | 48.5in |
| Counter Weight Ground Clearance | 16in | Track Width | 37in |
| SERVICE | |||
| Package Method | Wood Case | Warranty for Machine | 1 Year |
| Packing Size | 91x40x98 in | Weight (N.W./G.W.) | 2180/2440 lbs |
