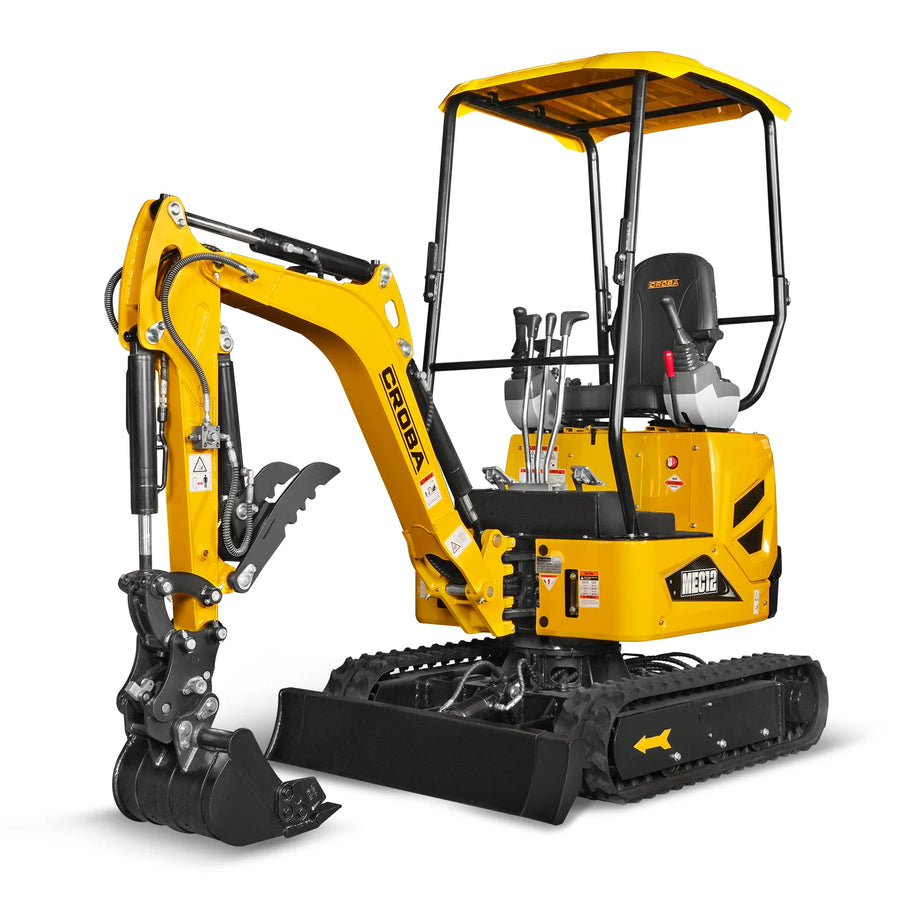

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12
Factory Authorized Dealer
Authorized for Milwaukee, DeWalt, Makita, Bosch, Festool. Never gray-market.
Full Manufacturer Warranty
Every tool is covered by the full factory warranty and serviced through authorized service centers.
Free Shipping Over $99
Order by 3PM CT for same-day shipping. Ships from US warehouses.
30-Day Money-Back Guarantee
Return any unused tool in original packaging within 30 days for a full refund.
Talk to a Tool Expert
1-800-555-0199
Mon–Fri 7AM–7PM CT • Sat 8AM–4PM CT
Live chat with real tool specialists — never a bot
Genuine OEM Parts & Accessories
Replacement parts and accessories sourced direct from the manufacturer.
| ENGINE | |||
| Model | Kubota D722 | Rated speed | 2500rpm |
| No.Of Cylinders | 3 | Displacement | 43.88in³ |
| Stroke | 2.68in | Engine Output | 13.7hp |
| Bore | 2.64in | Warranty for Engine | 2-Year |
| TRAVEL SYSTEM | |||
| Travel Speed - High | 2.24 mile/h | Ground Clearance | 15.9in |
| Travel Speed - Low | 1.12 mile/h | Ground Pressure | 5.1psi |
| Maximum Traction Force - Low Speed | 2923lbf | Gradeability - Maximum | Maximum 30 degrees |
| WEIGHT | |||
| Operating Weight | 2700lb | ||
| HYDRAULIC SYSTEM | |||
| Type | Load Sensing Hydraulics with Variable Displacement Piston Pump | Max.Discharge Flow | 4.65 gpm |
| SWING SYSTEM | |||
| Swing Speed | 8rpm | Tail Swing Radius | 48.1in |
| DIGGING FORCE（ISO6015) | |||
| Boom Length | 52in | Bucket Digging Force | 1960lbf |
| Arm length | 35in | Arm Digging Force | 875lbf |
| REFILING CAPACITIES & LUBRICATIONS | |||
| Fuel Tank | 2.4gal | Hydraulic Oil Tank | 3.2gal |
| Cooling System | 1.1gal | System Capacity | 4.8gal |
| Engine Oil | 0.7gal | ||
| BUCKET | |||
| Bucket Capacity | 0.7 ft³ | Bucket Width | 15 in |
| SCOPE OF WORK | |||
| Max.Digging Height | 111.2in | Min Turning Radius Of Working Device | 48.1in |
| Max.Dumping Height | 81.1in | Max. Lift Above Ground | 5.5in |
| Max.Digging Depth | 65.7in | Max. Drop Below Ground | 8.9in |
| Max.Vertical Digging Depth | 62.6in | Boom Swing - Left | 53° |
| Max Digging Radius | 119in | Boom Swing - Right | 40° |
| Max.digging Radius At Ground Level | 118.7in | ||
| DIMENSIONS | |||
| Transportation Length | 92.4in/114.8in | Crawler Wheel Base | 42.5in |
| Overall Width （Retracted/Expanded) | 42.7 in | Track Belt/Shoe Width | 7in |
| Overall Height（To Top Of Cab） | 89.5in | Track Length | 55.5in |
| Counter Weight Ground Clearance | 16.7in | Track Width（Retracted/Expanded) | 34.6 in/42.7 in |
| Ground Clearance | 15.9in | ||
| SERVICE | |||
| Package Method | Wood Case | Warranty for Machine | 1 Year |
| Packing Size | 91x40x98 in | Weight (N.W./G.W.) | 2700/2978 lb |
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
